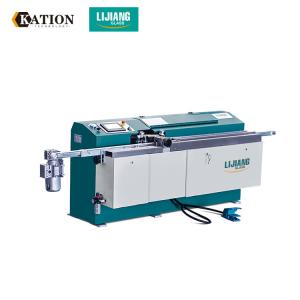

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer
frames evenly with hot melt butyl. This equipment use large electrical control panel which
makes the operation more easier. The conveyor of aluminum is controlled by frequency
converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest
speed in China
It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic
supercharging system, which makes the squeezing pressure more stable. The dispensing
cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong
the life of squeezing system and set the heating time in 24 hours with electricity and air pressure.
The distance of squeezing head can be adjusted automatically according to different aluminum
spacer. The machine has reached the worldwide technology with the characteristic of complete
function and stable working mode.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
KINCO Touch Screen
Clear interface,
Simple operation,
Smart touch screen,
Updated programming
Germany Maximator Cylinder
The supercharging system adopts famous
pneumatic and hydraulic cylinder, control the
pressure of outlet oil strongly.
Special Structure
Automatic exhaust function,
keep spreading butyl constantly and
evenly without bubbles.
Company Profile
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass
machinery and related auxiliary equipment for the glass deep processing industry and the door
and window construction industry. Has the professional processing basis of insulating glass
machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials,
etc. In this way, we provide the most comprehensive glass processing solution and windows &
doors solution for domestic and foreign customers well.
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer
to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
