L5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending Machine

Product Categories
Jinan Lijiang Automation Equipment Co., Ltd.
Contact Now

L5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending Machine

Brand Name : Kation

Model Number : Kation006

Certification : CE

Place of Origin : China

MOQ : 10meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10sets/month

Delivery Time : 10days

Packaging Details : Container or papaer case

Name : Warm edge spacer of insulating glass

Colour : Customerized

Dilivery time : 10days

Material : sealant

Sample : can be support

advantage : New technolgy of warm edge

Contact Now

High quality Insulating Glass warm edge spacers for insulating glass processing and professional spacer bending machine

Warm Adge Spacer with Butyl Sealant for Insulating Glass Processing

The insulating glass sideband has the functions of sound insulation, heat insulation, energy saving, safety, anti-fog, etc. It is suitable for building curtain walls, door and window glass, trains, ships, airplanes, refrigerators, etc.

Color: You can choose gold, silver, black, etc.
Uses manufacture building doors and windows, trains, buses, hollow glass, hollow doors, shutters, refrigeration equipment, etc.
Usage and precautions: All glass should be dry and clean. The insulating glass should be made through the following steps.
Compared with ordinary partitions, the advantage of warm edges

------Can reduce the heat transfer coefficient of the whole window

------Improve the dew resistance of insulating glass

------effectively reduce the possibility of glass self- explosion crack

L5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending Machine
L5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending Machine

Declare:

1. The thickness can be customized according to requirements

2. The packing quantity of each carton is determined by the model, thickness and length

. No rust, corrosion resistance, high brightness.

. The surface is uniform, straight, without deformation and dimensional stability.

. Only one straight connection is used, with good sealing performance and long service life.

The limit deviation of the outer wall thickness is ±0.025mm.

L5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending Machine

High strength, toughness, and can be continuously bent to any angle of the aluminum frame of the terminal device.

The vents are neatly arranged.

In order to ensure the activity of molecular sieve, to ensure excellent adhesion with various types of adhesives.

Energy-saving and environmental protection, low heat transfer coefficient

Three types: all stainless steel, stainless steel + glass fiber, all glass fiber

The color and thickness are variable and can be customized.

L5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending Machine
Model Thickness(mm) Length(m)

AmountPer

box(m)

Package

dimensions(m)
9A 0.2-0.35 5M 1100 5×0.16×0.11
12A 0.2-0.35 5M 880 5×0.16×0.11
14A 0.2-0.35 5M 770 5×0.16×0.11
15A 0.2-0.35 5M 660 5×0.16×0.11
19A 0.2-0.35 5M 550 5×0.16×0.11
20A 0.2-0.35 5M 490 5×0.16×0.11
22A 0.2-0.35 5M 450 5×0.16×0.11
24A 0.2-0.35 5M 400 5×0.16×0.11
27A 0.2-0.35 5M 350 5×0.16×0.11

L5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending Machine

L5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending Machine

L5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending Machine

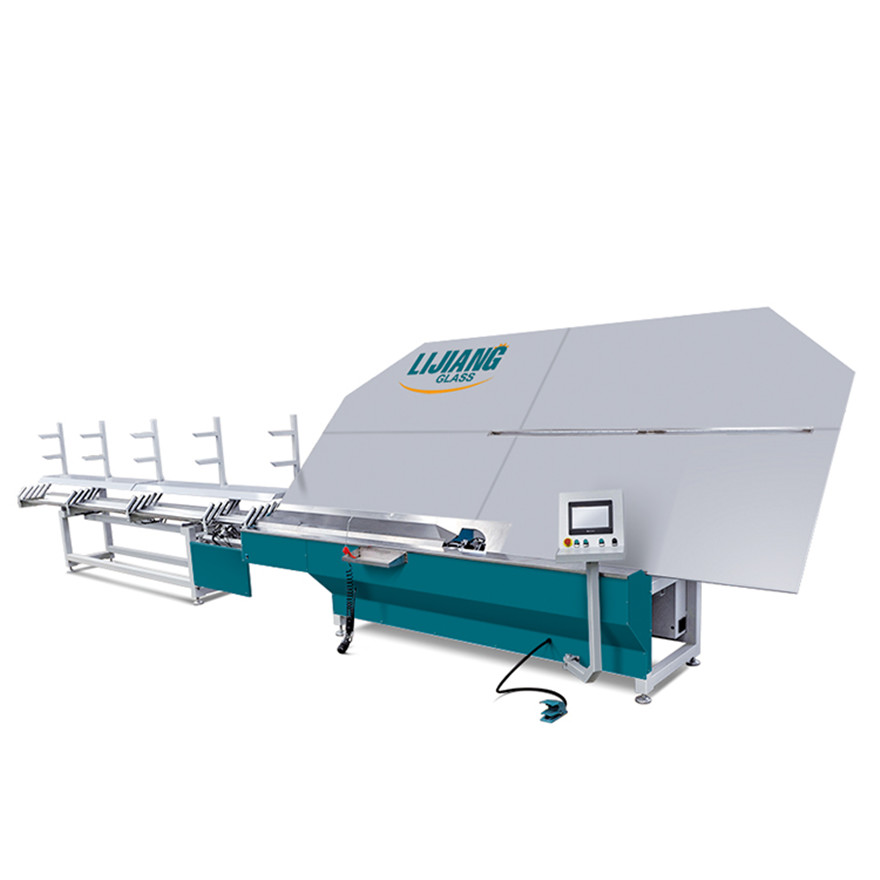

Automatic spacer bending machine LJZW2020

Application

The automatic gasket bending machine is special equipment that replaces the hollow glass aluminum frame of the hollow glass manufacturing technology. The equipment can produce one aluminum belt at a time to make a variety of convex polygonal aluminum frames, thereby enhancing the strength of the aluminum frame and making the sealing effect of the insulating glass better.

Technical data

Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

Electrical parameters

NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor GERMAN SIEMENS Solenoid valve Taiwan AIRTAC
Servo driver GERMAN SIEMENS Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI

L5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending MachineL5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending MachineL5M Thick 0.35mm Insulating Glass Spacers For Spacer Bending Machine

As professional Insulating glass machine manufacture in China, except material such as Molecular sieve and aluminum spacer and sealant. We are good at developing and producing automatic vertical insulating glass processing production lines, vertical Low-E glass edge deleting machines, automatic robots insulating glass production lines,s and so on.
