Touch Screen Operation Edge Bar Bending Machine 1050022002600 Mm Dimension

Name: Touch Screen Operation Edge Bar Bending Machine 1050022002600 Mm Dimension
Brand: Lijiang
Price: 1 USD

Brand Name : Lijiang

Model Number : LJZW2020A

Certification : CE

Place of Origin : Jinan China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 sets/month

Delivery Time : 30 days

Packaging Details : Seaworthy plastic or plywood aviloble

Color : Customers' Request

Max.bending size : 2000mm*2000mm

Min.bending size : 250mm*200mm

Aluminum spacer width : 5.5-24mm

Dimensional error : ≤±0.5mm

Angle error : ≤±1°

Processing speed : ≤26s

Air supply : ≥0.65MPa

Weight : 1250kg

Power : 2.5KW

Contact Now

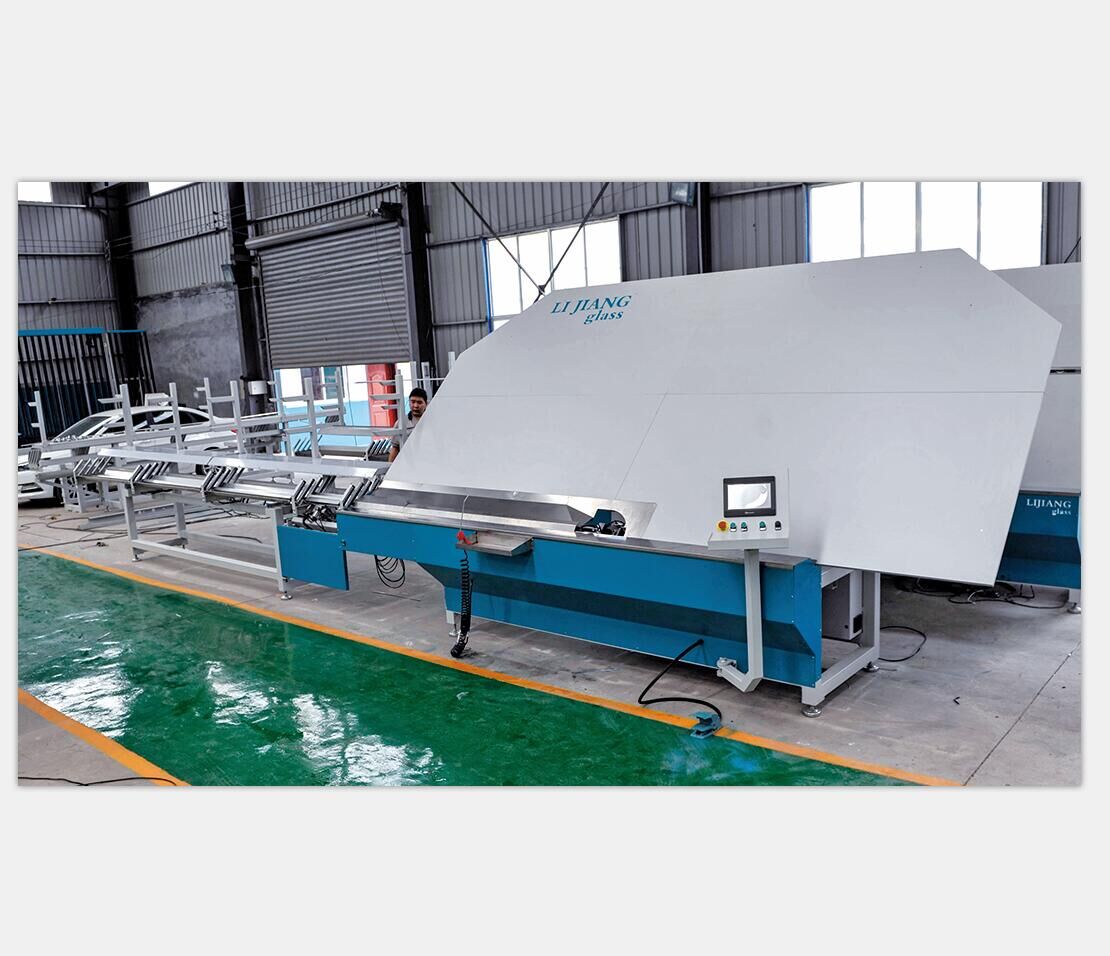

Warm Edge Spacer Bar Bending Machine For Insulating Glass Unit With Touch Screen And Four Spacer Storage

The Warm Edge Spacer Bar Bending Machine For Insulating Glass Unit With Touch Screen And Four Spacer Storage is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, and the machine has functions of size optimization calculation, evading connected pieces and connecting automatically. So the machine can greatly increase bending efficiency, it only spends 26s to bend a 1m*1m frame. The machine can process angle size well and control the anger size in 0.015mm. It also can bend special-shaped frame and it improves practicability of machines by humanization designed.

Main technical parameter

Max.bending size	2000mm*2000mm
Min.bending size	250mm*200mm
Aluminum spacer width	5.5-24mm
Dimensional error:	≤±0.5mm
Angle error	≤±1º
Processing speed	≤26s
Air supply	≥0.65MPa
Total power	AC220/380V 50Hz 2.5KW
Dimension	10500mm2200mm2600mm

Main features

Can bending aluminum spacers,Technoform, Alkupro, Thermix, Swisspacer and Stainless steel
Germany Siemens PLC control system&Japan Fuji CNC control system
Shaped spacer frames according to stored shape catalogue (option )
For processing of aluminium box profiles made of bendable alloy
Automatic drill glass filling hole(optional)
Correction cut if connector appears to come into bending section
Four spacer size storage units
Manual transport of profiles into bending area, without recovery of residual spacer bar
Automatic length measuring system
Product marking by inkjet printer –option-
Control: Efficient multi-axis control for exact coordination of transport, bending and operating functions
Easy operation by touch screen surface
Integrated fault diagnostic system

Machine details
